Eris

2017

/site/assets/files/1703/robot_1-1.jpg

Stats

Record37-27-01
MAR Rank1
Drive Team Dahany Choi, Connor Hofenbitzer, Niratjot Grewal, Harsha Pavuluri, Aditya Pillai
Awards

Hatboro-Horsham District Finalist

Hatboro-Horsham District Entrepreneurship Award

Springside-Chestnut Hill District Quarterfinalist

Springside-Chestnut Hill District Industrial Design Award

Festival de Robotique- Montreal Regional Finalist

Festival de Robotique- Montreal Regional Entrepreneurship Award

Festival de Robotique- Montreal Regional Wildcard

FIRST Mid-Atlantic District Championship Winner

FIRST Mid-Atlantic District Championship Industrial Design Award

Team 2590 Nemesis is proud to present our 2017 Robot “Eris”

Check out our reveal video!

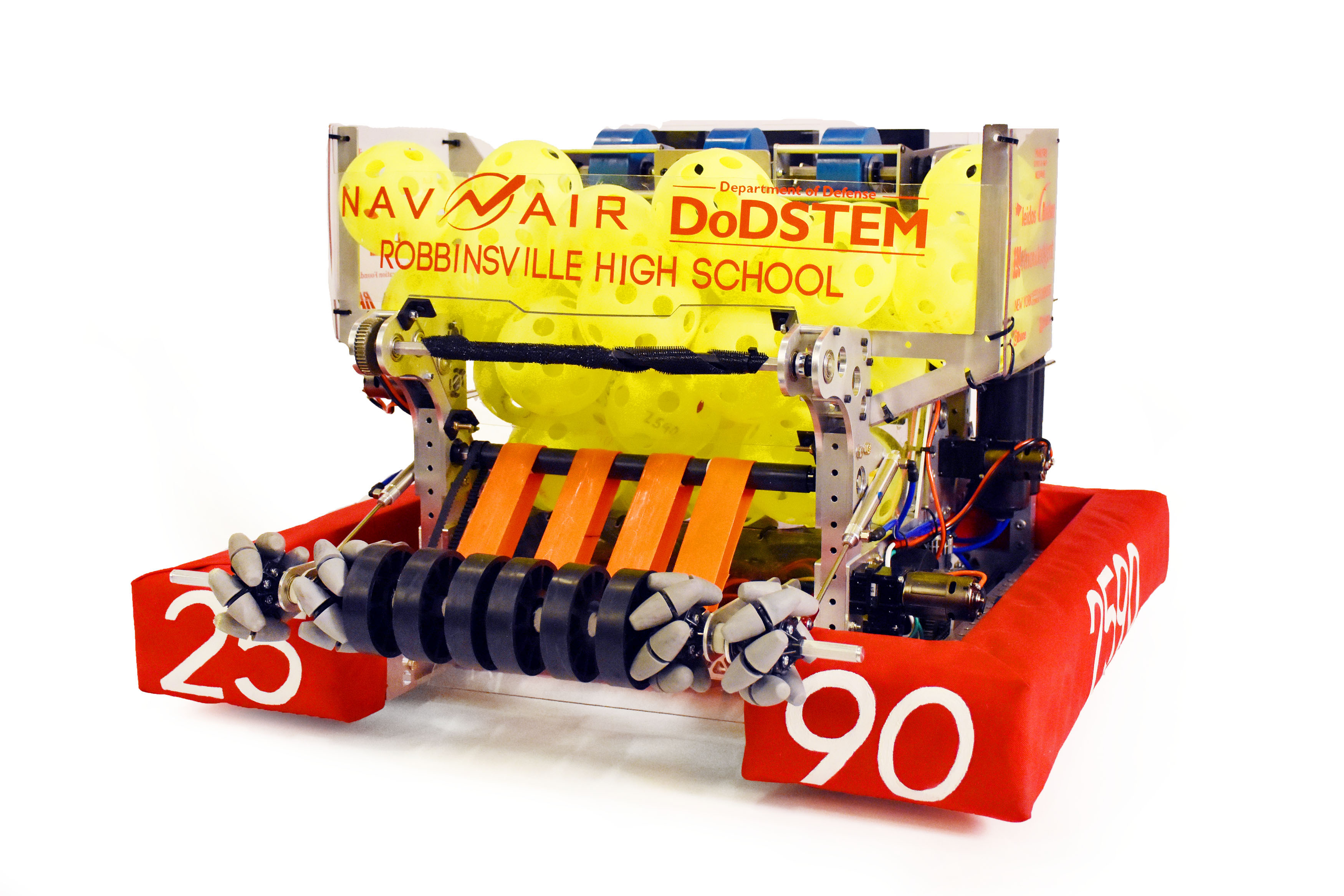

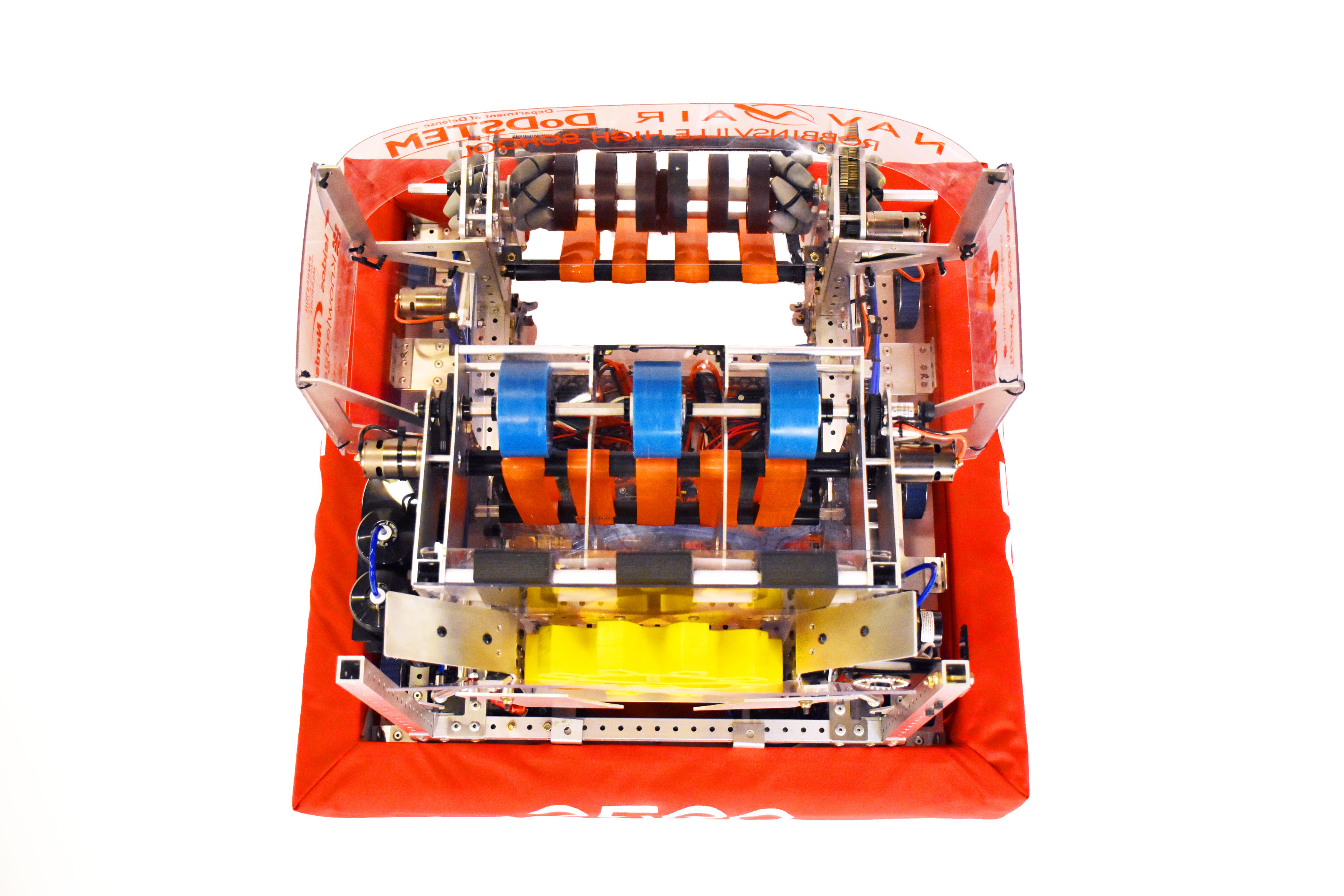

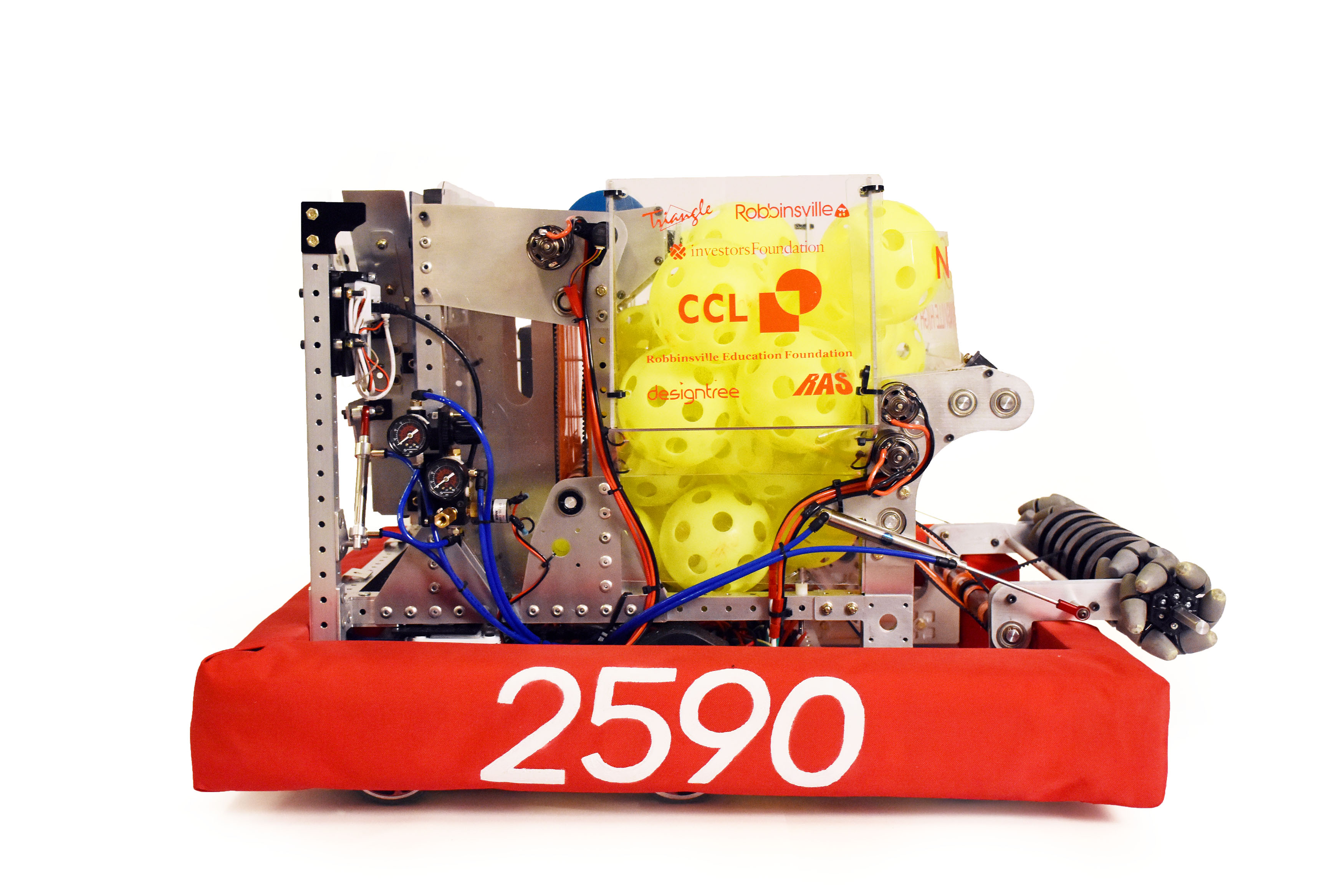

Nemesis’ 2017 robot Eris features an articulating intake, climber, gear manipulator, and a triple flywheel shooter. The intake consists of compliant and mecanum wheels that utilize the bumper to center the balls into a hopper. Four urethane belts on the intake pull the balls into the hopper which is all belted and powered by a versaplanetary gearbox. The hopper is designed to hold 50 balls and consistently feed balls into the shooters.

The drivetrain is powered by two modified VEXPro ball shifters, run by two CIM motors each. Capable of 6 feet per second for fine adjustments and pushing matches and 14 feet per second for cross-field runs and high agility. Shifting is controlled by pneumatic pistons for seamless transition between gear states.

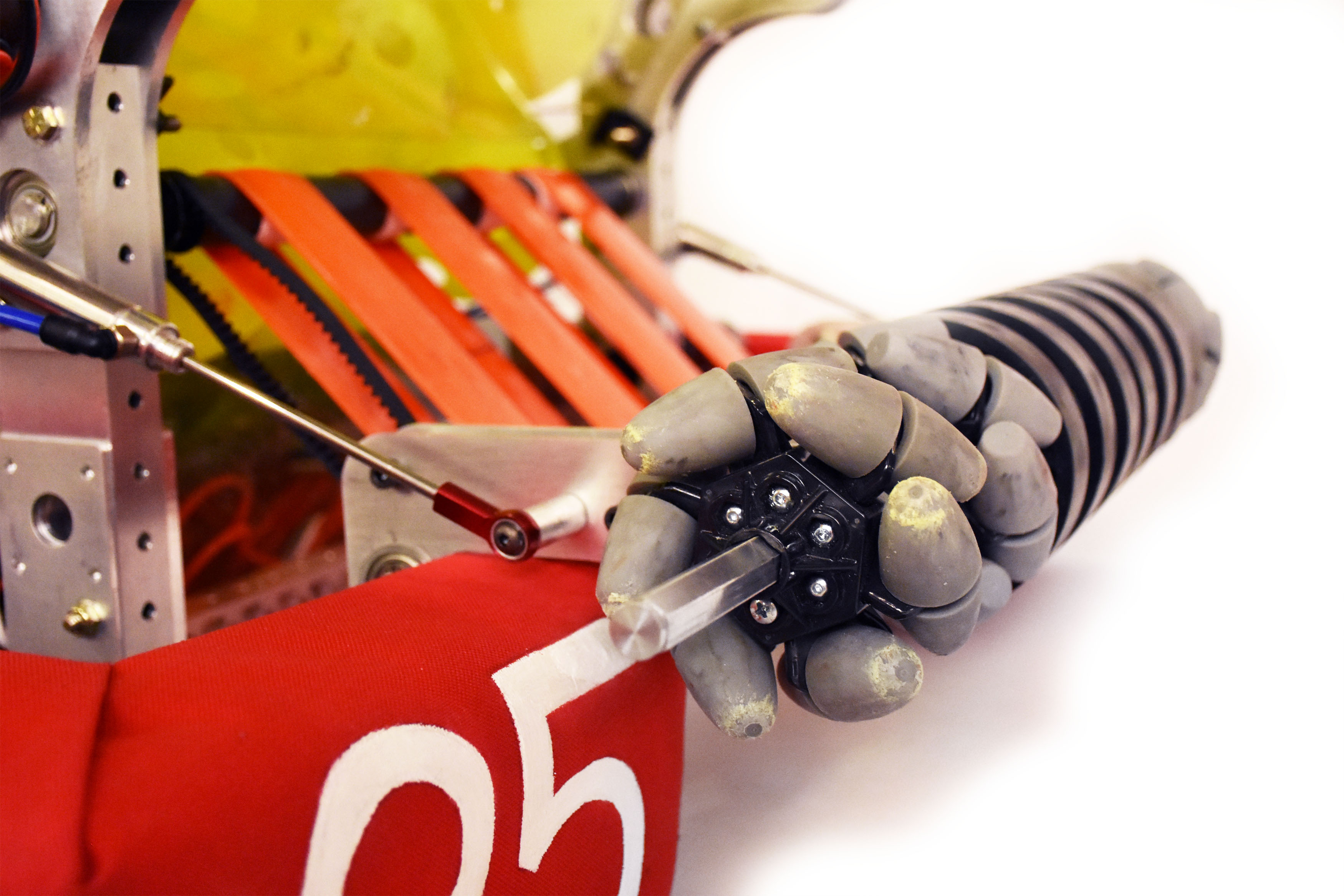

Eris’ intake is an over-the-bumper style intake. Actuated by two pneumatic pistons and powered by a single 775pro motor, the intake glides just above the height of the balls, sweeping up fuel with ease.

Powered by two 775pros belted 3:1, Eris’ shooter fires at a rapid and consistent rate. The three shooter wheels are urethane rollers that compress the ball ½ inch. Static at a fixed 87 degrees, the shooter is optimized for shooting from a few specific locations.

A shaft wrapped in double hook velcro powered by two 775pros allow for a swift three second climb. A reversible ratcheting wrench prevents backdrive and easy detachment from the rope.

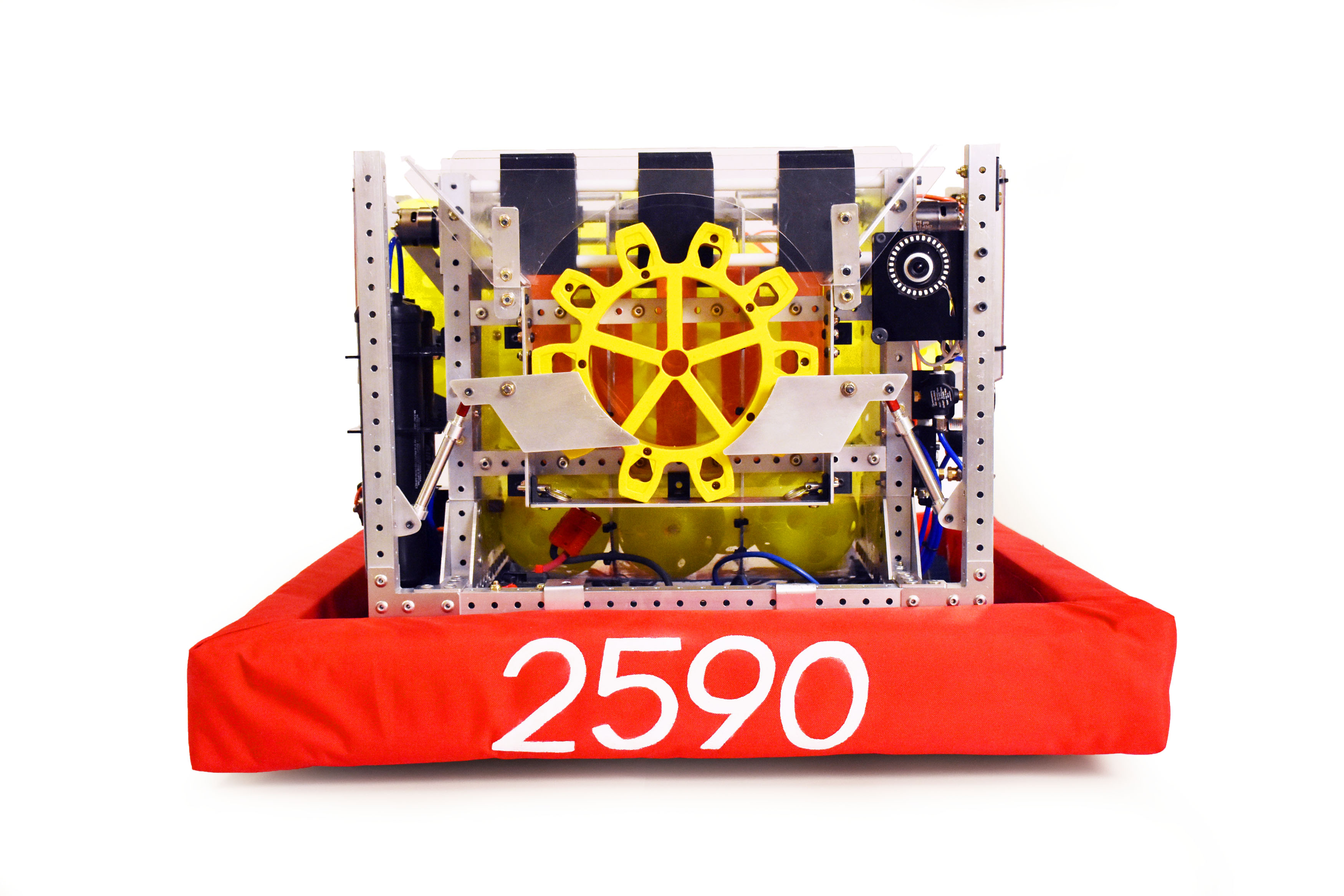

The Gear manipulator employs two pneumatic powered pistons that actuate wings that keep and release the game piece. A slot exists to enable quick cycles from the human player station to the airship.

Implementing autonomous scripting allows Eris to choose from multiple different autonomous routines. The adjustable and diverse range of autonomous actions make Eris the perfect fit for any alliance.

Eris will be competing at Hatboro-Horsham, Springside Chestnut Hill, and Montreal.

Thanks to our sponsors:
Robbinsville High School, NAVAIR, Department of Defense Stem, CCL Label, Knowledgent, Nordson, Leidos, New York Society of Cosmetic Chemists, Robbinsville Education Association, RAS Process Equipment, Princeton Sports & Family Med, Investors Foundation, Sharbell Development Corp., Robbinsville Education Foundation, Gilbane Inc., Designtree, NorthStar Vets, Skylink Technology Inc., Triangle Copy, Coldwell Banker, and all Nemesis Friends and Family.

Written by: Dahany Choi

The Challenge

FIRST Steamworks

FIRST® STEAMWORKS the 2017 FIRST Robotics Competition game, invites two adventure clubs from an era in which technology relied on steam power to prepare
their airships for the ultimate long distance race.

Watch the game reveal video!
